Référence de la classe TiXmlBase

#include <tinyxml.hpp>

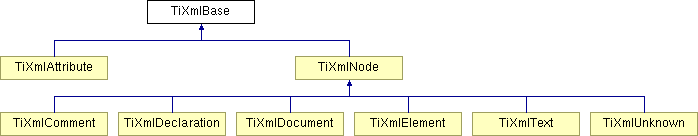

Graphe d'héritage de TiXmlBase:

TiXmlAttribute TiXmlNode TiXmlComment TiXmlDeclaration TiXmlDocument TiXmlElement TiXmlText TiXmlUnknown Liste de tous les membres

Types publics

enum  {
  TIXML_NO_ERROR = 0, TIXML_ERROR, TIXML_ERROR_OPENING_FILE, TIXML_ERROR_OUT_OF_MEMORY,
  TIXML_ERROR_PARSING_ELEMENT, TIXML_ERROR_FAILED_TO_READ_ELEMENT_NAME, TIXML_ERROR_READING_ELEMENT_VALUE, TIXML_ERROR_READING_ATTRIBUTES,
  TIXML_ERROR_PARSING_EMPTY, TIXML_ERROR_READING_END_TAG, TIXML_ERROR_PARSING_UNKNOWN, TIXML_ERROR_PARSING_COMMENT,
  TIXML_ERROR_PARSING_DECLARATION, TIXML_ERROR_DOCUMENT_EMPTY, TIXML_ERROR_EMBEDDED_NULL, TIXML_ERROR_PARSING_CDATA,
  TIXML_ERROR_STRING_COUNT
}

Fonctions membres publiques

virtual void Print (FILE *cfile, int depth) const =0
int Row () const
int Column () const
 See Row().
void SetUserData (void *user)
void * GetUserData ()
virtual const char * Parse (const char *p, TiXmlParsingData *data, TiXmlEncoding encoding)=0

Fonctions membres publiques statiques

static void SetCondenseWhiteSpace (bool condense)
static bool IsWhiteSpaceCondensed ()
 Return the current white space setting.

Attributs publics statiques

static const int utf8ByteTable [256]

Fonctions membres protégées

virtual void StreamOut (TIXML_OSTREAM *) const =0

Fonctions membres protégées statiques

static const char * SkipWhiteSpace (const char *, TiXmlEncoding encoding)
static bool IsWhiteSpace (char c)
static bool StreamWhiteSpace (TIXML_ISTREAM *in, TIXML_STRING *tag)
static bool StreamTo (TIXML_ISTREAM *in, int character, TIXML_STRING *tag)
static const char * ReadName (const char *p, TIXML_STRING *name, TiXmlEncoding encoding)
static const char * ReadText (const char *in, TIXML_STRING *text, bool ignoreWhiteSpace, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)
static const char * GetEntity (const char *in, char *value, int *length, TiXmlEncoding encoding)
static const char * GetChar (const char *p, char *_value, int *length, TiXmlEncoding encoding)
static void PutString (const TIXML_STRING &str, TIXML_OSTREAM *out)
static void PutString (const TIXML_STRING &str, TIXML_STRING *out)
static bool StringEqual (const char *p, const char *endTag, bool ignoreCase, TiXmlEncoding encoding)
static int IsAlpha (unsigned char anyByte, TiXmlEncoding encoding)
static int IsAlphaNum (unsigned char anyByte, TiXmlEncoding encoding)
static int ToLower (int v, TiXmlEncoding encoding)
static void ConvertUTF32ToUTF8 (unsigned long input, char *output, int *length)

Attributs protégés

TiXmlCursor location
void * userData
 Field containing a generic user pointer.

Attributs protégés statiques

static const char * errorString [TIXML_ERROR_STRING_COUNT]

Amis

class TiXmlNode
class TiXmlElement
class TiXmlDocument

Classes

struct  Entity
class  StringToBuffer

Description détaillée

TiXmlBase is a base class for every class in TinyXml. It does little except to establish that TinyXml classes can be printed and provide some utility functions.

In XML, the document and elements can contain other elements and other types of nodes.

	A Document can contain:	Element	(container or leaf)
							Comment (leaf)
							Unknown (leaf)
							Declaration( leaf )

	An Element can contain:	Element (container or leaf)
							Text	(leaf)
							Attributes (not on tree)
							Comment (leaf)
							Unknown (leaf)

	A Decleration contains: Attributes (not on tree)



Documentation des fonctions membres

virtual void TiXmlBase::Print FILE *  cfile,
int  depth
const [pure virtual]


All TinyXml classes can print themselves to a filestream. This is a formatted print, and will insert tabs and newlines.

(For an unformatted stream, use the << operator.)

Implémenté dans TiXmlAttribute, TiXmlElement, TiXmlComment, TiXmlText, TiXmlDeclaration, TiXmlUnknown, et TiXmlDocument.

int TiXmlBase::Row  )  const [inline]


Return the position, in the original source file, of this node or attribute. The row and column are 1-based. (That is the first row and first column is 1,1). If the returns values are 0 or less, then the parser does not have a row and column value.

Generally, the row and column value will be set when the TiXmlDocument::Load(), TiXmlDocument::LoadFile(), or any TiXmlNode::Parse() is called. It will NOT be set when the DOM was created from operator>>.

The values reflect the initial load. Once the DOM is modified programmatically (by adding or changing nodes and attributes) the new values will NOT update to reflect changes in the document.

There is a minor performance cost to computing the row and column. Computation can be disabled if TiXmlDocument::SetTabSize() is called with 0 as the value.

Voir également:
TiXmlDocument::SetTabSize()

static void TiXmlBase::SetCondenseWhiteSpace bool  condense  )  [inline, static]


The world does not agree on whether white space should be kept or not. In order to make everyone happy, these global, static functions are provided to set whether or not TinyXml will condense all white space into a single space or not. The default is to condense. Note changing this values is not thread safe.


Documentation des données membres

const char * TiXmlBase::errorString [static, protected]


Valeur initiale:

{
    "No error",
    "Error",
    "Failed to open file",
    "Memory allocation failed.",
    "Error parsing Element.",
    "Failed to read Element name",
    "Error reading Element value.",
    "Error reading Attributes.",
    "Error: empty tag.",
    "Error reading end tag.",
    "Error parsing Unknown.",
    "Error parsing Comment.",
    "Error parsing Declaration.",
    "Error document empty.",
    "Error null (0) or unexpected EOF found in input stream.",
    "Error parsing CDATA.",
}

const int TiXmlBase::utf8ByteTable [static]


Valeur initiale:


  {

        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,
        1,  1,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,
        2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,  2,
        3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,  3,
        4,  4,  4,  4,  4,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1,  1
  }


La documentation de cette classe a été générée à partir des fichiers suivants:
